High productivity Guardrail Roll Forming Machine

High productivity Guardrail Roll Forming Machine

$39000.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei
Productivity:	200 sets/year
Supply Ability:	200 sets/year
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Certificate:	CE/ISO9001
Transportation:	Ocean

Product Description

High productivity Guardrail Roll Forming Machine

Roof roll forming machine also named expressway guardrail forming machine,it is used for producing three waves shaped guardrail. It possesses good features of high corrosion resistance, high aging resistance, elegant appearance and easy installation.

Steel Guard Rail Roll Forming Machine is mainly constituted of uncoiler, feed leading table, main forming machine, punching system, cutting device, hydraulic station and computer control system.

Working Flow:
Decoiler - Leveling machine - Servo feeding system - Hydraulic punching - Feeding guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Cutting - Output Table

Working process

Technical parameters:

Matching material	Galvanized, PPGI, Aluminum
Material thickness range	2-4mm
Main motor power	18.5KW
Hydraulic motor power	15KW
Forming speed	8-10m/min(include punching)
Rollers	about 18 rows
Material of rollers	Cr12
Shaft material and diameter	106mm, material is Cr12
Way of driven	Chain transmission or Gear box
Material of cutter blade	Cr 12 mould steel with quenched treatment 58-62℃
Controlling system	Siemens PLC
Voltage	380V/3Phase/50Hz
Total weight	about 8 tons
Size of the machine	LWH 12m1.5m1.2m

Pictures of machine:

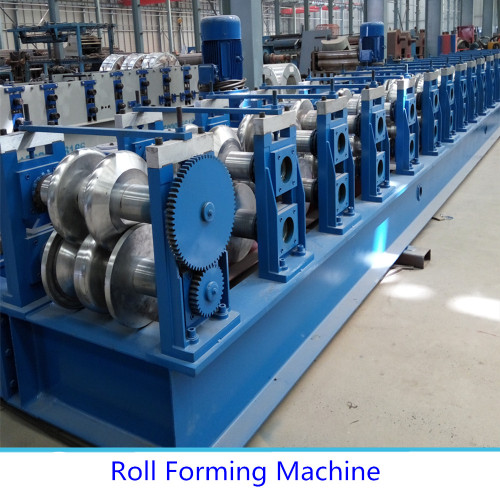

Guardrail roll forming machine

Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.

Our products were sold to more than 20 countries already. Also included US and Germany.
Main product :

Roof roll forming machine
Roller shutter door roll forming machine
C and Z purlin roll forming machine
Downpipe roll forming machine
Light keel roll forming machine
Shearing machine
Hydraulic decoiler
Bending machine
Slitting machine

FAQ:

Training and Installation :
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.

Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
