ibr metal roof sheet cold roll forming machine

ibr metal roof sheet cold roll forming machine

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 30 Days

Transportation:: Ocean

Port:: Tianjin Xingang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei
Productivity:	200 sets/year
Supply Ability:	200 sets/year
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Certificate:	CE/ISO9001
HS Code:	84552210
Transportation:	Ocean
Port:	Tianjin Xingang

Product Description

Trapezoid roof sheet forming machine

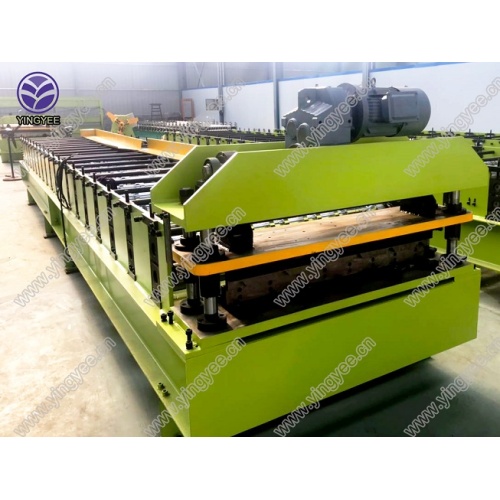

IBR metal roof sheet cold roll forming machine line includes 7 tons manual decoiler, roll forming host, PLC control system and hydraulic cutting system.

The manual decoiler is free for the machine, it can hold 7 tons of raw material, and normally the distance between the manual decoiler and the roll forming host is 3 meters.

Roll forming host has 11 rows of rollers to make profiles as per customer's request.

Roll forming machines metal roofing , Metal galvanized coils as raw material, PLC control, Chain transmission, has fast speed, feature of high stabilization

Working Flow:
Decoiler - Feeding Guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Cutting - Output Table

Working process

Technical parameters:

Raw materials	Galvanized coils, Pre-painted coils, Aluminum coils
Material thickness range	0.2-1mm
Forming speed	10-15m/min
Rollers	15 rows(according to drawings)
Material of rollers	45# steel with chromed
Shaft material and diameter	76mm, material is 40Cr
Material of body	400H steel
Wall panel	20mm Q195 steel(all with electrostatic spraying)
Controlling system	PLC
Main power	5.5KW
Material of cutting blade	Cr12 mould steel with quenched treatment
Voltage	380V/3Phase/50Hz
Total weight	about 4 tons

Pictures of machine:

Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.

Our products were sold to more than 20 countries already. Also included US and Germany.
Main product :

Roof roll forming machine
Roller shutter door roll forming machine
C and Z purlin roll forming machine
Downpipe roll forming machine
Light keel roll forming machine
Shearing machine
Hydraulic decoiler
Bending machine
Slitting machine

FAQ:

Training and Installation :
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
