CNG/LPG Cylinder Filament Winding Machine

Get Latest Price

Payment Type:: L/C, T/T, D/P

Incoterm:: FOB, CFR, CIF, EXW, FCA, CPT, CIP

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 30 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Productivity:	10sets/month
Supply Ability:	10sets/month
Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Transportation:	Ocean

Product Description

Product Profile

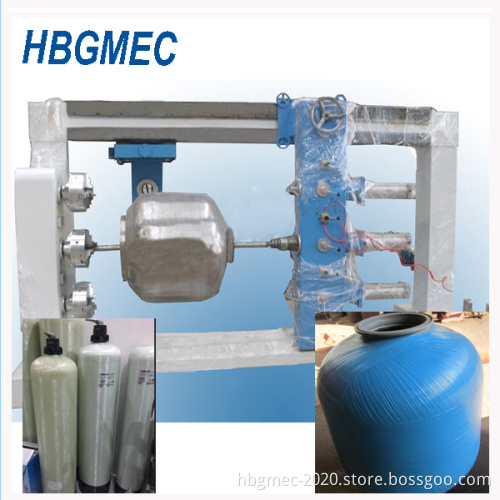

CNG filament winding machine - FWM4 type, this winding machine system mainly carries on the continuous and discontinuous winding to the target mandrel, and it is a system of implementation of discontinuous positioning loop winding by through orbit determination, positioning control to the winding process.

The main technical parameters:

Structure type: gantry type

Linkage shaft: 4 axis

Spindle No.: 1/2/3/4/5 spindles

Winding tech.: wet/dry winding

Cylinder size: DN100-DN2000mm

Cylinder length: max.6000mm

Winding angle: 7°-90°

Winding accuracy: ±0.2mm

Speed of main mandrel: 0-150rpm/min

Control system:

CNG filament winding machine is designed to produce bottle type, cylinder type, cone type etc, such as CNG cylinder, LPG cylinder, FRP water treatment tank, and other pressure vessels.

Company Overview

Over 28 years’ filament winding experience, we can provide qualified configurations, advanced design and develop tailor-made machines after accurately exploring and researching your needs to maximize your profit.

Plant overview

We have complete processing facility and test machine, professional technical team and R&D research department, which improve the machine accuracy to make the machine up to high quality level in China market.

Quality Control system

We put the whole production process divided into 7 systems, which includes Supply System, Production Management System, QC System, Packing System, Pre Delivery Inspection System, Storage System and After sales Service System. In each system, we set test machine or QC person, so as to achieve strict quality supervision and control to each processing sector of the machine.
