Filament winding machine for GRP high pressure pipe
-
USD80000≥1 Set/Sets
- Payment Type:
- L/C, T/T, D/P
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Productivity: | 10sets/month |
|---|---|
| Supply Ability: | 10sets/month |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Transportation: | Ocean |
Product Profile

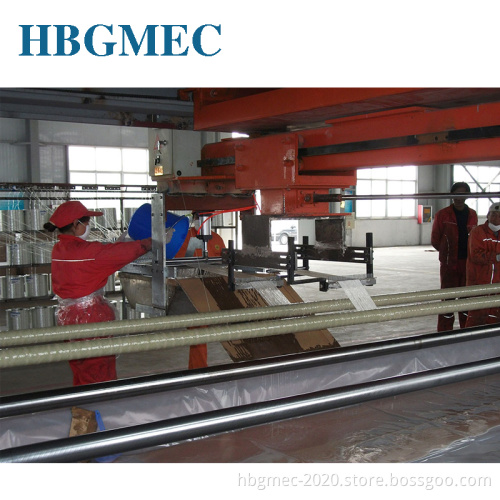

GRP high pressure pipe filament winding machine - FWM-H-4 type, this winding machine system mainly carries on the continuous and discontinuous winding to the target mandrel, and it is a system of implementation of discontinuous positioning loop winding by through orbit determination, positioning control to the winding process.
The main features:
- Four mandrels rotate at same time, winding, curing and de-molding implement at same time by a same machine.
- The curing method adopts steam heating to the mandrel inside.
- The thread and pipe body use same material, which can support same tension.
The main parameters:
- Structure type: horizontal type
- Linkage shaft: 4 axis
-
Spindle
No.: 4spindles
- Winding tech.: wet/dry winding
- Cylinder size: DN40-DN400mm
- Cylinder length: max.9000mm
- Winding angle: 7°-90°
- Winding accuracy: ±0.2mm
- Speed of main mandrel: 0-150rpm/min
The application:
- Oil &gas pipe - onshore
- Vessel & offore platform
- GRE pipe for bittem special purpose
- Underground FRP pipe and casing pipe
Company Overview
Over 28 years’ filament winding experience, we can provide qualified configurations, advanced design and develop tailor-made machines after accurately exploring and researching your needs to maximize your profit.
-
Plant Overview
We have complete processing facility and test machine, professional technical team and R&D research department, which improve the machine accuracy to make the machine up to high quality level in China market.
- Quality control system
We put the whole production process divided into 7 systems, which includes Supply System, Production Management System, QC System, Packing System, Pre Delivery Inspection System, Storage System and After sales Service System. In each system, we set test machine or QC person, so as to achieve strict quality supervision and control to each processing sector of the machine.
