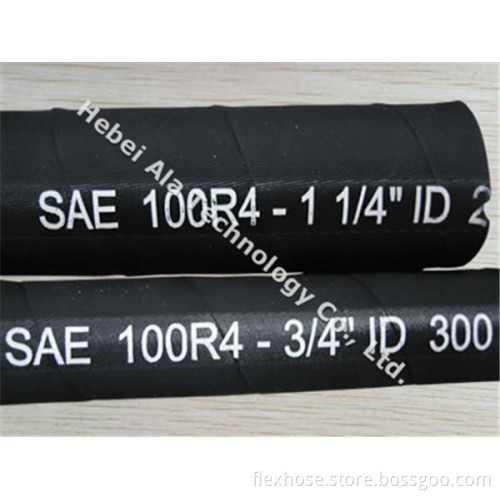

SAE 100 R4 Hydraulic Hose with Textile Fiber and Steel Wire Spiral Reinforcement
SAE 100 R4 hydraulic hose is suitable for delivering petroleum-based hydraulic oil. It is composed of three parts: tube, reinforcement and cover. Tube is made from oil resistant synthetic rubber, making hose have excellent performance in delivering petroleum-based hydraulic oil. Reinforcement is made from one layer or multiple layers of cloth or textile fibers with proper steel wire spiral, making hose suitable for high working pressure environment. Cover is made from oil and weather resistant synthetic rubber, making hose suitable for terrible working environment.
The details of SAE 100 R4 hydraulic hose:
· Structure: it is composed of three parts: tube, reinforcement and cover.
· Tube: oil resistant synthetic rubber.
· Reinforcement: one layer or multiple layers of cloth or textile fiber with proper steel wire braid.
· Cover: oil and weather resistant synthetic rubber.
· Temperature range: -40 °C to +100 °C.
· Hose ID: 19 mm - 102 mm.
|
The specification of SAE 100 R4 hydraulic hose (1) |
||||||||
|
Hose code |
Size |
SAE size |
ID |
OD |
Working pressure |
|||
|
inch |
mm |
1/16 |
min |
max |
max |
MPa |
psi |
|
|
SAE100R4-01 |
3/4 |
19 |
-12 |
18.2 |
19.8 |
34.9 |
2.1 |
305 |
|
SAE100R4-02 |
1 |
25 |
-16 |
24.6 |
26.2 |
41.3 |
1.7 |
250 |
|
SAE100R4-03 |
1-1/4 |
31.5 |
-20 |
30.6 |
33.0 |
50.8 |
1.4 |
200 |
|
SAE100R4-04 |
1-1/2 |
38 |
-24 |
36.9 |
39.3 |
57.2 |
1.05 |
150 |
|
SAE100R4-05 |
2 |
51 |
-32 |
49.2 |
52.4 |
69.9 |
0.7 |
100 |
|
SAE100R4-06 |
2-1/2 |
63 |
-40 |
61.9 |
65.1 |
82.6 |
0.4 |
60 |
|
SAE100R4-07 |
3 |
76 |
-48 |
74.6 |
77.8 |
95.3 |
0.4 |
60 |
|
SAE100R4-08 |
3-1/2 |
89 |
-56 |
87.3 |
90.5 |
107.9 |
0.3 |
40 |
|
SAE100R4-09 |
4 |
102 |
-64 |
100.0 |
103.2 |
120.7 |
0.25 |
40 |
|
The specification of SAE 100 R4 hydraulic hose (2) |
|||||||
|
Hose code |
Test pressure |
Burst pressure |
Min bend radius |
Weight |
|||
|
MPa |
psi |
MPa |
psi |
inch |
mm |
kg/m |
|
|
SAE100R4-01 |
4.2 |
610 |
8.4 |
1210 |
4.92 |
125 |
0.92 |
|
SAE100R4-02 |
3.5 |
510 |
7 |
1015 |
5.91 |
150 |
1.10 |
|
SAE100R4-03 |
2.8 |
410 |
5.6 |
810 |
7.87 |
200 |
1.30 |
|
SAE100R4-04 |
2.1 |
305 |
4.2 |
610 |
10.04 |
255 |
1.80 |
|
SAE100R4-05 |
1.4 |
200 |
2.8 |
410 |
11.81 |
300 |
2.23 |
|
SAE100R4-06 |
0.85 |
120 |
1.7 |
250 |
13.98 |
355 |
3.23 |
|
SAE100R4-07 |
0.8 |
120 |
1.6 |
230 |
18.11 |
460 |
4.25 |
|
SAE100R4-08 |
0.6 |
90 |
1.25 |
180 |
20.87 |
530 |
5.05 |
|
SAE100R4-09 |
0.5 |
70 |
1 |
145 |
24.02 |
610 |
5.60 |
SAE 100 R4 hydraulic hose is suitable for delivering petroleum-based hydraulic oil because of its oil resistant synthetic rubber tube.
SAE 100 R4 hydraulic hose is suitable for high working pressure environment for its textile fiber with steel wire spiral reinforcement.
