EN854 2TE Hydraulic Hose
- Payment Type:
- L/C, T/T, D/P, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 5000 Meter
- Min. Order:
- 5000 Meter
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Tianjin, Ningbo, Qingdao
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500000m/week |
| Supply Ability: | 500000m/week |
| Payment Type: | L/C,T/T,D/P,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | ISO2009 |
| HS Code: | 40093100 |
| Transportation: | Ocean,Land,Air |
| Port: | Tianjin,Ningbo,Qingdao |

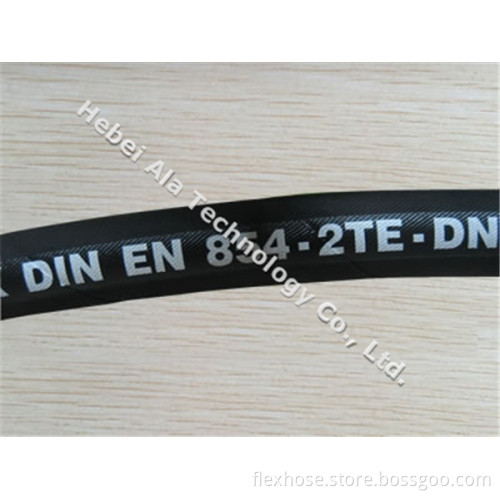

EN854-2TE Hydraulic Hose with Oil and Weather Resistant Cover
EN854-2TE hydraulic hose is similar to EN854 1TE HYDRAULIC Hoses in application. It is also used to handle hydraulic fluids in accordance with ISO6743-4 with the exception of HRDR, HFDS and HFDT. And the temperature of hydraulic fluids ranges from -40 °C to +100 °C. It is composed of three parts: tube, reinforcement and cover. Tube is made from oil and water resistant synthetic rubber, making hose perform well in delivering hydraulic oil. Reinforcement is made from one layer of high tensile textile fiber braid, making hose bear high working pressure. Cover is made from oil and weather resistant synthetic rubber, making hose suitable for harsh working environment and have long service life.
The details of EN854-2TE hydraulic hose:
· Structure: it is composed of three parts: tube, reinforcement and cover.
· Tube: oil and water resistant synthetic rubber.
· Reinforcement: one layer of high tensile textile fiber braid.
· Cover: oil and weather resistant synthetic rubber.
· Temperature range: -40 °C to +100 °C.
· Hose ID: 4.76 mm - 25.4 mm.
The specification of EN854-2TE hydraulic hose (1)
Hose code
Size
SAE size
ID
OD
Working pressure
inch
mm
1/16
min
max
min
max
MPa
psi
EN8542TE-01
3/16
4.76
-3
4.4
5.2
11
12.6
8
1160
EN8542TE-02
1/4
6.35
-4
5.9
6.9
12.6
14.2
7.5
1088
EN8542TE-03
5/16
7.94
-5
7.4
8.4
14.1
15.7
6.8
986
EN8542TE-04
3/8
9.53
-6
9
10
15.7
17.3
6.3
914
EN8542TE-05
1/2
12.7
-8
12.1
13.3
18.7
20.7
5.8
841
EN8542TE-06
5/8
15.88
-10
15.3
16.5
22.9
24.9
5
725
EN8542TE-07
3/4
19.05
-12
18.2
19.8
26
28
4.5
653
EN8542TE-08
1
25.4
-16
24.6
26.2
32.9
35.9
4
580
The specification of EN854-2TE hydraulic hose (2)
Hose code
Test pressure
Burst pressure
Min bend radius
Weight
MPa
psi
MPa
psi
inch
mm
kg/m
EN8542TE-01
16
2320
32
4640
1.378
35
0.117
EN8542TE-02
16
2176
30
4352
1.575
40
0.139
EN8542TE-03
13.6
1972
27.2
3944
1.969
50
0.157
EN8542TE-04
12.6
1828
25.2
3656
2.362
60
0.183
EN8542TE-05
11.6
1682
23.2
3364
2.756
70
0.222
EN8542TE-06
10
1450
20
2900
3.543
90
0.316
EN8542TE-07
9
1306
18
2612
4.331
110
0.37
EN8542TE-08
8
1160
16
2320
5.118
130
0.547
EN854-2TE hydraulic hose can bear high working pressure because of its high tensile textile fiber braid reinforcement.
EN854-2TE hydraulic hose is suitable for harsh working environment for its oil and weather resistant synthetic rubber cover.
EN854-2TE Hydraulic Hose with Oil and Weather Resistant Cover
EN854-2TE hydraulic hose is similar to EN854 1TE HYDRAULIC Hoses in application. It is also used to handle hydraulic fluids in accordance with ISO6743-4 with the exception of HRDR, HFDS and HFDT. And the temperature of hydraulic fluids ranges from -40 °C to +100 °C. It is composed of three parts: tube, reinforcement and cover. Tube is made from oil and water resistant synthetic rubber, making hose perform well in delivering hydraulic oil. Reinforcement is made from one layer of high tensile textile fiber braid, making hose bear high working pressure. Cover is made from oil and weather resistant synthetic rubber, making hose suitable for harsh working environment and have long service life.
The details of EN854-2TE hydraulic hose:
· Structure: it is composed of three parts: tube, reinforcement and cover.
· Tube: oil and water resistant synthetic rubber.
· Reinforcement: one layer of high tensile textile fiber braid.
· Cover: oil and weather resistant synthetic rubber.
· Temperature range: -40 °C to +100 °C.
· Hose ID: 4.76 mm - 25.4 mm.
|
The specification of EN854-2TE hydraulic hose (1) |
|||||||||
|
Hose code |
Size |
SAE size |
ID |
OD |
Working pressure |
||||
|
inch |
mm |
1/16 |
min |
max |
min |
max |
MPa |
psi |
|
|
EN8542TE-01 |
3/16 |
4.76 |
-3 |
4.4 |
5.2 |
11 |
12.6 |
8 |
1160 |
|
EN8542TE-02 |
1/4 |
6.35 |
-4 |
5.9 |
6.9 |
12.6 |
14.2 |
7.5 |
1088 |
|
EN8542TE-03 |
5/16 |
7.94 |
-5 |
7.4 |
8.4 |
14.1 |
15.7 |
6.8 |
986 |
|
EN8542TE-04 |
3/8 |
9.53 |
-6 |
9 |
10 |
15.7 |
17.3 |
6.3 |
914 |
|
EN8542TE-05 |
1/2 |
12.7 |
-8 |
12.1 |
13.3 |
18.7 |
20.7 |
5.8 |
841 |
|
EN8542TE-06 |
5/8 |
15.88 |
-10 |
15.3 |
16.5 |
22.9 |
24.9 |
5 |
725 |
|
EN8542TE-07 |
3/4 |
19.05 |
-12 |
18.2 |
19.8 |
26 |
28 |
4.5 |
653 |
|
EN8542TE-08 |
1 |
25.4 |
-16 |
24.6 |
26.2 |
32.9 |
35.9 |
4 |
580 |
|
The specification of EN854-2TE hydraulic hose (2) |
|||||||
|
Hose code |
Test pressure |
Burst pressure |
Min bend radius |
Weight |
|||
|
MPa |
psi |
MPa |
psi |
inch |
mm |
kg/m |
|
|
EN8542TE-01 |
16 |
2320 |
32 |
4640 |
1.378 |
35 |
0.117 |
|
EN8542TE-02 |
16 |
2176 |
30 |
4352 |
1.575 |
40 |
0.139 |
|
EN8542TE-03 |
13.6 |
1972 |
27.2 |
3944 |
1.969 |
50 |
0.157 |
|
EN8542TE-04 |
12.6 |
1828 |
25.2 |
3656 |
2.362 |
60 |
0.183 |
|
EN8542TE-05 |
11.6 |
1682 |
23.2 |
3364 |
2.756 |
70 |
0.222 |
|
EN8542TE-06 |
10 |
1450 |
20 |
2900 |
3.543 |
90 |
0.316 |
|
EN8542TE-07 |
9 |
1306 |
18 |
2612 |
4.331 |
110 |
0.37 |
|
EN8542TE-08 |
8 |
1160 |
16 |
2320 |
5.118 |
130 |
0.547 |
EN854-2TE hydraulic hose can bear high working pressure because of its high tensile textile fiber braid reinforcement.
EN854-2TE hydraulic hose is suitable for harsh working environment for its oil and weather resistant synthetic rubber cover.
