SAE 100 R1 A Hydraulic hoses
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 500 Meter
- Min. Order:
- 500 Meter
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Tianjin, Qingdao, Ningbo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500000m/week |
| Supply Ability: | 500000m/week |
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | ISO2009 |
| HS Code: | 40093100 |
| Transportation: | Ocean,Land,Air |
| Port: | Tianjin,Qingdao,Ningbo |

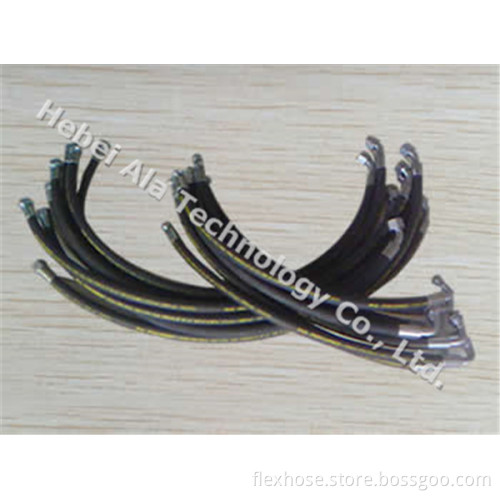

SAE 100 R1 A Hydraulic Hose Needing Outer Rubber Stripping
SAE 100 R1 A hydraulic hose, also called DIN EN 853 1ST hydraulic hose, is similar to SAE 100 R1 A Hydraulic hoses in structure. It is also composed of three parts: tube, reinforcement and cover. Tube is made from black oil resistant synthetic rubber, making hose have excellent performance in delivering hydraulic oils. Reinforcement is made from one high tensile and high strength steel wire braid, which is specialized for rubber hose. And the reinforcement makes hose have solid structure and bear high working pressure. Cover is made from black oil, corrosion and abrasion resistant synthetic rubber, making hose resistant to weather, ozone, heat and aging. It needs outer rubber layer stripping in withholding joints for this kind of Hydraulic Hoses.
The details of SAE 100 R1 A hydraulic hose:
· Structure: it is composed of three parts: tube, reinforcement and cover.
· Tube: black oil resistant synthetic rubber.
· Reinforcement: one high strength and high tensile steel wire braid.
· Cover: black oil, corrosion and abrasion resistant synthetic rubber.
· Temperature range: -40 °C to +100 °C.
· Hose ID: 6.4 mm - 50.8 mm.
· Reinforcement OD: 11.1 mm - 60.2 mm.
· Hose OD: 15.9 mm - 66.7 mm.
|
The specification of SAE 100 R1 A hydraulic hose |
|||||||||||
|
Hose code |
Hose ID |
Rein OD |
Hose OD |
Working pressure |
Burst pressure |
Min bend radius |
Weight |
Length |
|||
|
inch |
mm |
mm |
mm |
MPa |
psi |
MPa |
psi |
mm |
kg/m |
m |
|
|
SAE100R1A-01 |
1/4 |
6.4 |
11.1 |
15.9 |
22.5 |
3270 |
90 |
12840 |
100 |
0.31 |
50/100 |
|
SAE100R1A-02 |
5/16 |
7.9 |
12.7 |
17.5 |
21.5 |
3120 |
85 |
12280 |
114 |
0.38 |
50/100 |
|
SAE100R1A-03 |
3/8 |
9.5 |
15.1 |
19.8 |
18 |
2615 |
72 |
10280 |
127 |
0.45 |
50/100 |
|
SAE100R1A-04 |
1/2 |
12.7 |
18.3 |
23 |
16 |
2320 |
64 |
9180 |
178 |
0.55 |
50/100 |
|
SAE100R1A-05 |
5/8 |
15.9 |
21.4 |
26.2 |
13 |
1890 |
52 |
7420 |
200 |
0.63 |
50 |
|
SAE100R1A-06 |
3/4 |
19 |
25.4 |
30.2 |
10.5 |
1530 |
42 |
6000 |
240 |
0.77 |
50 |
|
SAE100R1A-07 |
1 |
25.4 |
33.3 |
38.1 |
8.8 |
1280 |
35 |
5020 |
300 |
1.06 |
50 |
|
SAE100R1A-08 |
1-1/4 |
31.8 |
40.5 |
46 |
6.3 |
920 |
25 |
3600 |
419 |
1.45 |
20 - 40 |
|
SAE100R1A-09 |
1-1/2 |
38.1 |
46.8 |
52.4 |
5 |
730 |
20 |
2860 |
500 |
1.8 |
20 - 40 |
|
SAE100R1A-10 |
2 |
50.8 |
60.2 |
66.7 |
4 |
580 |
16 |
2280 |
630 |
2.3 |
20 - 40 |
