EN857 2SC Hydraulic Hoses
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 500 Meter
- Min. Order:
- 500 Meter
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Tianjin, Qingdao, Ningbo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500000m/week |
| Supply Ability: | 500000m/week |
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | ISO2009 |
| HS Code: | 40093100 |
| Transportation: | Ocean,Land,Air |
| Port: | Tianjin,Qingdao,Ningbo |

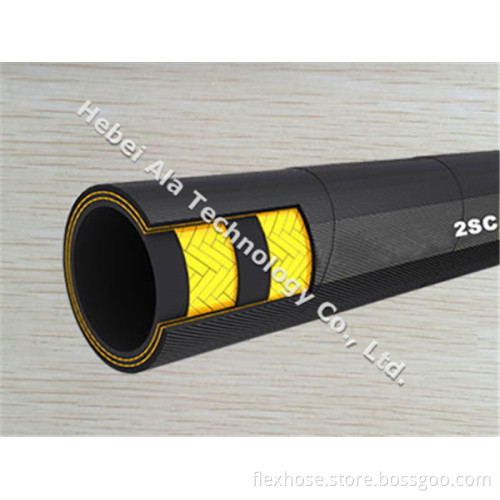

EN857-2SC hydraulic hose is similar to EN857-1SC HYDRAULIC Hoses in application. It is also used for petroleum-based hydraulic oil delivery at the temperature range of -40 °C to +100 °C. It is composed of three parts: tube, reinforcement and cover. Tube is made from oil resistant synthetic rubber, making hose have outstanding performance in delivering hydraulic oil. Reinforcement is made from two layers of high tensile steel wire braid, making hose bear higher working pressure than EN857-1SC hydraulic hose. And the high tensile reinforcement makes hose have solid structure and resistant to bend, kink and fatigue. Cover is made from high quality oil and weather resistant synthetic rubber, making hose have long service life.
The details of EN857-2SC hydraulic hose:
· Structure: it is composed of three parts: tube, reinforcement and cover.
· Tube: oil resistant synthetic rubber.
· Reinforcement: two layers of high tensile steel wire braid.
· Cover: oil and weather resistant synthetic rubber.
· Temperature range: -40 °C to +100 °C.
· Hose ID: 6.35 mm - 25.4 mm.
The specification of EN857-2SC hydraulic hose (1)
Hose code
Size
SAE size
Hose ID
Rein OD
Hose OD
inch
mm
1/16
min
max
min
max
max
EN8572SC-01
1/4
6.35
-4
6.1
6.9
10.6
11.7
14.2
EN8572SC-02
5/16
7.94
-5
7.7
8.5
12.1
13.3
16.0
EN8572SC-03
3/8
9.53
-6
9.3
10.1
14.4
15.6
18.3
EN8572SC-04
1/2
12.7
-8
12.3
13.5
17.5
19.1
21.5
EN8572SC-05
5/8
15.88
-10
15.5
16.7
20.5
22.3
24.7
EN8572SC-06
3/4
19.05
-12
18.6
19.8
24.6
26.4
28.6
EN8572SC-07
1
25.4
-16
25.0
26.4
32.5
32.5
36.6
The specification of EN857-2SC hydraulic hose (2)
Hose code
Working pressure
Test pressure
Burst pressure
Min bend radius
Weight
MPa
psi
MPa
psi
MPa
psi
inch
mm
kg/m
EN8572SC-01
40
5800
80
11600
160
23200
2.95
75
0.30
EN8572SC-02
35
5075
70
10150
140
20300
3.35
85
0.34
EN8572SC-03
33
4785
66
9570
132
19140
3.54
90
0.42
EN8572SC-04
27.5
3990
55
7975
110
15950
5.12
130
0.54
EN8572SC-05
25
3625
50
7250
100
14500
6.69
170
0.68
EN8572SC-06
21.5
3120
43
6235
86
12470
7.87
200
0.80
EN8572SC-07
16.5
2390
33
4785
66
9570
9.84
250
1.15
EN857-2SC hydraulic hose has solid structure because of its high tensile steel wire braid reinforcement.
EN857-2SC hydraulic hose is resistant to oil and weather because of its synthetic rubber cover.
EN857-2SC Hydraulic Hose with Two Layers of High Tensile Steel Wire Reinforcement
