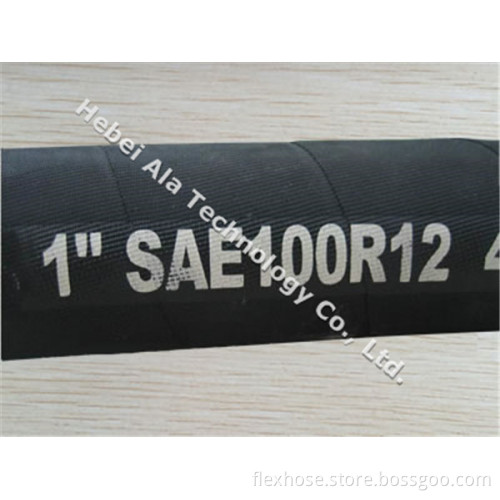

SAE J517 Type 100 R12 Hydraulic Hose Suitable for Harsh Working Environment
SAE J517 type 100 R12 hydraulic hose is suitable for engineering machinery and continuous working hydraulic equipment. It has excellent hot oil and impulse resistance. And it is suitable for high temperature environment. It is composed of three parts: tube, reinforcement and cover. Tube is made from black oil resistant synthetic rubber, making hose work well in delivering oils. Reinforcement is made from four layers of high tensile steel wire spiral, making hose suitable for high working pressure and resistant to bend and fatigue. Cover is made from black oil, corrosion and abrasion resistant synthetic rubber, making hose suitable for harsh environment. And the appearance looks like cloth.
The details of SAE J517 type 100 R12 hydraulic hose:
· Structure: it is composed of three parts: tube, reinforcement and cover.
· Tube: black oil resistant synthetic rubber.
· Reinforcement: four layers of high tensile steel wire spiral.
· Cover: black oil, corrosion and abrasion resistant synthetic rubber.
· Temperature range: -40 °C to +121 °C.
· Hose ID: 9.5 mm - 50.8 mm.
· Reinforcement OD: 17.8 mm - 64.8 mm.
· Hose OD: 21 mm - 68.3 mm.
The specification of SAE J517 type 100 R12 hydraulic hose
Hose code
Hose ID
Rein OD
Hose OD
Working pressure
Burst pressure
Min bend radius
Weight
Length
inch
mm
mm
mm
MPa
psi
MPa
psi
mm
kg/m
m
SAEJ517100R12-01
3/8
9.5
17.8
21
27.5
4000
110.3
16000
125
0.62
20 - 50
SAEJ517100R12-02
1/2
12.7
21.5
24.6
27.5
4000
110.3
16000
180
0.85
20 - 50
SAEJ517100R12-03
5/8
15.9
25.4
28.2
27.5
4000
110.3
16000
200
1.29
20 - 50
SAEJ517100R12-04
3/4
19
28.5
31.7
27.5
4000
110.3
16000
240
1.47
20 - 40
SAEJ517100R12-05
1
25.4
36
39.2
27.5
4000
110.3
16000
300
2
20 - 40
SAEJ517100R12-06
1-1/4
31.8
45.1
48.6
20.7
3000
82.7
12000
420
2.86
20 - 40
SAEJ517100R12-07
1-1/2
38.1
51.6
55
17.2
2500
69.0
10000
500
3.24
20 - 40
SAEJ517100R12-08
2
50.8
64.8
68.3
17.2
2500
69.0
10000
630
4.8
20 - 40
SAE J517 100 R12 hydraulic hose is suitable for engineering machinery and continuous working hydraulic equipment.
SAE J517 100 R12 hydraulic hose is suitable for high working pressure environment because of its steel wire spiral reinforcement.
