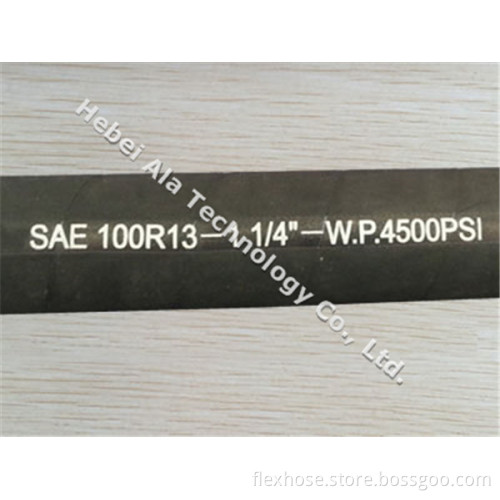

SAE J517 Type 100 R13 Hydraulic Hose with Four or Six Layers Steel Wire Reinforcement

SAE J517 type 100 R13 hydraulic hose is suitable for engineering machinery and continuous working hydraulic equipment. And it has excellent hot oil and impulse resistance in high pressure conditions. It is composed of three parts: tube, reinforcement and cover. Tube is made from black oil resistant synthetic rubber with high impulse resistance, making hose have good performance in delivering oil. Reinforcement is made from four or six layers of high tensile steel wire spiral, making hose suitable for high working pressure environment. And the reinforcement makes hose highly resistant to bending, kink and fatigue. Cover is made from black oil, corrosion and abrasion resistant synthetic rubber, making hose have long service life. And the appearance looks like cloth.

The details of SAE J517 type 100 R13 hydraulic hose:

· Structure: it is composed of three parts: tube, reinforcement and cover.

· Tube: black oil resistant synthetic rubber with high impulse resistance.

· Reinforcement: four layers or six layers of high tensile steel wire spiral.

· Cover: black oil, corrosion and abrasion resistant synthetic rubber.

· Temperature range: -40 °C to +121 °C.

· Hose ID: 19 mm - 50.8 mm.

· Reinforcement OD: 29.8 mm - 69.3 mm.

· Hose OD: 33.2 mm - 72.7 mm.

· Working pressure: 35 MPa (5075 psi).

· Burst pressure: 140 MPa (20300 psi).

The specification of SAE J517 type 100 R13 hydraulic hose
Hose code	Hose ID		Rein OD	Hose OD	Working pressure		Burst pressure		Min bend radius	Weight	Length
	inch	mm	mm	mm	MPa	psi	MPa	psi	mm	kg/m	m
SAEJ517100R13-01	3/4	19	29.8	33.2	35	5075	140	20300	240	1.68	20 - 40
SAEJ517100R13-02	1	25.4	36.4	39.8	35	5075	140	20300	300	2.24	20 - 40
SAEJ517100R13-03	1-1/4	31.8	48	51.3	35	5075	140	20300	420	3.9	20 - 40
SAEJ517100R13-04	1-1/2	38.1	55.5	58.8	35	5075	140	20300	500	5.07	20 - 40
SAEJ517100R13-05	2	50.8	69.3	72.7	35	5075	140	20300	630	7.91	20 - 40
Note: the reinforcement of the hydraulic hoses whose inside diameters are 1-1/4", 1-1/2" and 2" is made from six layers of steel wire spiral.

SAE J517 100 R13 hydraulic hose is highly resistant to hot oil and impulse in high pressure conditions.

SAE J517 100 R13 hydraulic hose is suitable for ultra high pressure environment because of its six layers of high tensile steel wire spiral reinfo
