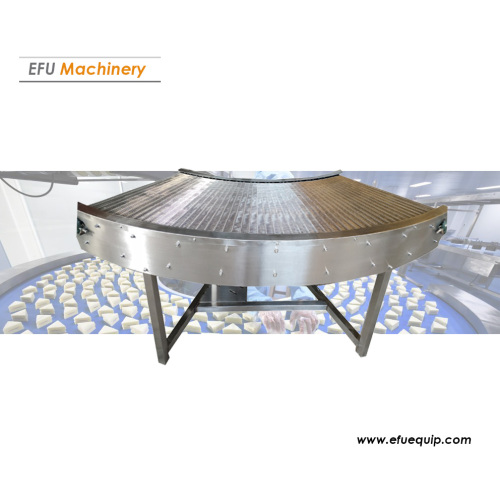

Curved Wire Mesh Conveyor

Structure and characteristics

The conveyor chain is a sleeve roller chain with a continuous bucket structure, used for leveling and climbing of high-temperature clinker.

Main features  of  stainless Steel Mesh Turn Conveyor

Large conveying capacity: The maximum conveying capacity can reach 526m3/h, and the maximum inclination angle can reach 60 degrees. High temperature resistant, can transport materials with temperature less than 600 degrees.
Long service life: long-pitch, sleeve roller chain is used in the traction chain, and all parts of the chain are made of alloy steel; it is heat-treated and is wear-resistant. The weight of the conveying part and materials is borne by the load-bearing parts; the chain no longer bears the weight, reducing wear.
The process layout is diverse: it can be horizontal, inclined, and can also be arranged by a combination of multiple levels and inclined.

The conveyor chain is composed of a traction chain, a load chain and a forward overlap (or reverse overlap) hopper, and the three parts can be freely loaded and unloaded. The load-bearing rollers are equipped with rolling bearings, which replace the previous sliding friction with rolling friction, reducing the running resistance by 55%-65%, greatly reducing the power consumption of the conveyor and reducing energy consumption. The traction chain is separated from the load chain, which simplifies the structure, reduces the cost, and is convenient for installation and maintenance.

Scope of application of metal mesh belt turning conveyor

1.The drying, dehumidification , cleaning, and quick-freezing processes of the metal mesh belt turning conveyor in various industries can convey light and heavy items, convey various cartons, packaging bags and other single-piece goods with low weight, and have a wide range of uses;
2.The material of the metal mesh belt turning conveyor conveyor belt is metal (such as stainless steel), so it has high strength, small elasticity, not easy to deform, easy to maintain, and hygienic, and it has strong corrosion or harsh environment and long service life. widely used;
3. Metal mesh belt turning conveyor is suitable for food, non-staple food, frozen aquatic product processing production lines, packaging conveyor lines and electronic accessories heating, baking conveying, and also suitable for pharmaceutical, daily chemical and other industries.
