Vertical Mobile Tipper Hoist
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 60 Days
- Transportation:
- Ocean, Land
- Port:
- Xin'gang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 20 sets per month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| HS Code: | 84386000 |
| Transportation: | Ocean,Land |
| Port: | Xin'gang |

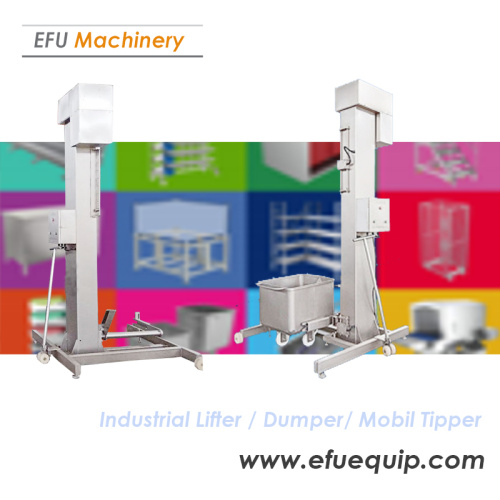

Characteristic of Vertical Mobile Tipper Hoist
1. The machine frame is made of SUS304 stainless steel.1. The vertical mobile hoist can smoothly lift the 200L standard hopper car to a predetermined position, and dump the materials in the hopper car into the designated equipment, reducing labor intensity and improving labor productivity;
2. The whole machine is made of stainless steel, and the chain drive adds a safety protection cover;3. The machine runs smoothly, is safe and reliable, easy to clean and easy to operate;
4. Jog and automatic modes are optional, and double detection switches ensure safe and reliable operation;
5. The lifting height is adjustable.
Application Scenario of Small Kitchen Vegetable Cutter
The vertical hoist is a hoisting equipment specially designed for the 200L standard meat truck. Its function is to lift the material to a certain height and dump it into the hopper of the material processing equipment to complete the feeding work.
Note for vertical hoist:
The working ground of the mobile hoist must be firm, level (horizontal), without unevenness. When lifting materials, the feet must be on the ground and the universal wheels must be on the ground. The load of the hoist must not exceed 200kg and the fork must be lowered to the lowest position when lifting The center of gravity of the hoist is high, so it must be slow, stable, and not tilted in the mobile type. People other than the operator are not allowed to enter within 3 meters of the equipment to ensure safety.
Performance Datas:
Nodel:EFTS-01
Lifting weight:200kg
Lifting height:1300-1900mm
Lifting speed:3m/min
Power:1.1kw
Dimensions:1200x980x2650mm
Whole machine weight: ≈300kg
