JIC Male 74° Cone Seal 16711
  • JIC Male 74° Cone Seal 16711
JIC Male 74° Cone Seal 16711

JIC Male 74° Cone Seal 16711

  • $0.70
    ≥500 Piece/Pieces
Min. Order:
500 Piece/Pieces
Min. Order:
500 Piece/Pieces
Transportation:
Ocean, Air
Port:
Xingang Port China, Qingdao Port China, Shanghai Port China
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 5000 pieces per day
Supply Ability: 5000 pieces per day
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,EXW
Certificate: ISO9001:2015
Transportation: Ocean,Air
Port: Xingang Port China,Qingdao Port China,Shanghai Port China
Product Description
Product Description

 Hydraulic Hose Fittings, Hydraulic Coupler, Hydraulic Adaptor.

Industrial Fittings, Hydraulic Quick Couplings, Hydraulic Fitting,Hydraulic Hose Machine, Hose Machines, Hydraulic Quick Coupler,

Hydraulic Hose Fittings, Camlock, Hydraulic Hose,

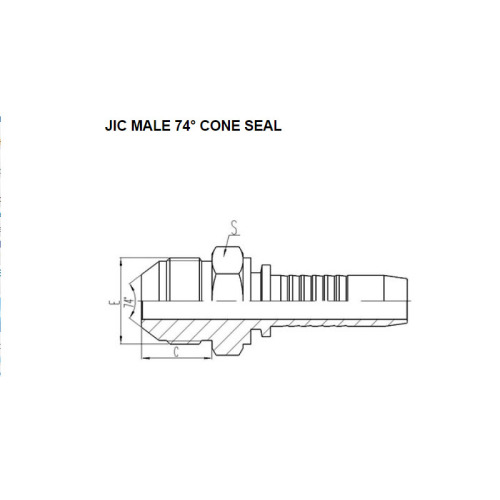

 JIC MALE 74° CONE SEAL (16711)

Material: carbon steel, stainless steel, brass;
Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel;
Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries.


Products Specification:



E

HOSE BORE

DIMENSIONS

PART NO.
THREAD E
DN
DASH
C
S
16711-04-04
7/16"X20
6
04
14
12
16711-05-04
1/2"X20
6
04
14
14
16711-05-05
1/2"X20
8
05
14
14
16711-06-04
9/16"X18
6
04
14
17
16711-06-05
9/16"X18
8
05
14
17
16711-06-06
9/16"X18
10
06
14
17
16711-08-06
3/4"X16
10
06
16.7
22
16711-08-08
3/4"X16
12
08
16.7
22
16711-10-06
7/8"X14
10
06
19.3
24
16711-10-08
7/8"X14
12
08
19.3
24
16711-10-10
7/8"X14
16
10
19.3
24
16711-12-08
1.1/16"X12
12
08
22
30
16711-12-10
1.1/16"X12
16
10
22
30
16711-12-12
1.1/16"X12
20
12
22
30
16711-12-16
1.1/16"X12
25
16
22
32
16711-14-10
1.3/16"X12
16
10
22.5
32
16711-14-12
1.3/16"X12
20
12
22.5
32
16711-16-12
1.5/16"X12
20
12
23
36
16711-16-16
1.5/16"X12
25
16
23
36
16711-20-16
1.5/8"X12
25
16
24.3
46
16711-20-20
1.5/8"X12
32
20
24.3
46
16711-24-20
1.7/8"X12
32
20
27.5
50
16711-24-24
1.7/8"X12
38
24
27.5
50
16711-32-32
2.1/2"X12
51
32
34
65
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 16712-xx-xx;
