45° JIC Female 74° Cone 26741

$1.00

≥500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Transportation:: Ocean, Air

Port:: Xingang Port China, Qingdao Port China, Shanghai Port China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000 pieces per day
Supply Ability:	5000 pieces per day
Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001:2015
Transportation:	Ocean,Air
Port:	Xingang Port China,Qingdao Port China,Shanghai Port China

Product Description

Hydraulic hose fittings, hydraulic couplier, hydraulic adaptor.

Salty Steam Testing, 72 Hours, 96 Hours

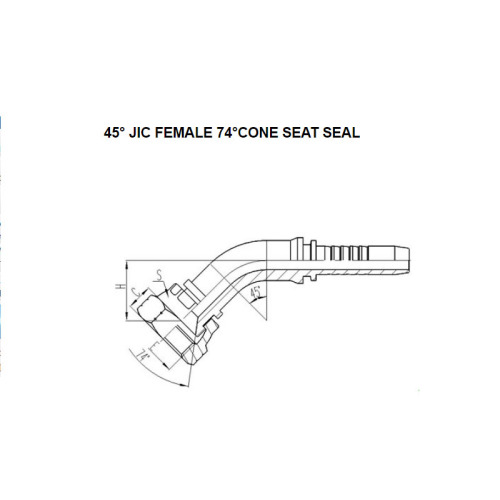

45° JIC FEMALE 74°CONE SEAT SEAL (26741)

Material: carbon steel, stainless steel, brass;

Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel;

Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries.

Products Specification:

E

HOSE BORE

DIMENSIONS

PART NO.

THREAD E

DN

DASH

C

H

S

26741-04-04

7/16"X20

6

04

9

18.1

15

26741-05-05

1/2"X20

8

05

9.5

19.3

17

26741-06-05

9/16"X18

8

05

10.5

19.3

19

26741-06-06

9/16"X18

10

06

10.5

20

19

26741-08-06

3/4"X16

10

06

11

21.4

24

26741-08-08

3/4"X16

12

08

11

23.5

24

26741-10-10

7/8"X14

16

10

13

25.3

27

26741-10-12

7/8"X14

20

12

13

28.9

27

26741-12-10

1.1/16"X12

16

10

15

26.4

32

26741-12-12

1.1/16"X12

20

12

15

30

32

26741-14-12

1.3/16"X12

20

12

15

30

36

26741-16-16

1.5/16"X12

25

16

16

31.5

41

26741-20-16

1.5/8"X12

25

16

17

32.5

50

26741-20-20

1.5/8"X12

32

20

17

36.6

50

26741-24-20

1.7/8"X12

32

20

20

36.9

55

26741-24-24

1.7/8"X12

38

24

20

41.6

55

26741-32-32

2.1/2"X12

51

32

23.5

49.5

75

Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 26742-xx-xx .

Hyraulic Couplings, Hydraulic Hose Fitting, Hydraulic Hoses And Fittings,Hose Crimping Machine, Hydraulic Fitting,

Hydraulic Connectors, Hydraulic Hose Machine.

Send your message to this supplier

* From:
* To:

Mr. CAO YAN
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

45 Elbow JIC Female Fittings , American JIC Hose Coupler , Hydraulic Hose JIC Female Fittings

E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	C	H	S
26741-04-04	7/16"X20	6	04	9	18.1	15
26741-05-05	1/2"X20	8	05	9.5	19.3	17
26741-06-05	9/16"X18	8	05	10.5	19.3	19
26741-06-06	9/16"X18	10	06	10.5	20	19
26741-08-06	3/4"X16	10	06	11	21.4	24
26741-08-08	3/4"X16	12	08	11	23.5	24
26741-10-10	7/8"X14	16	10	13	25.3	27
26741-10-12	7/8"X14	20	12	13	28.9	27
26741-12-10	1.1/16"X12	16	10	15	26.4	32
26741-12-12	1.1/16"X12	20	12	15	30	32
26741-14-12	1.3/16"X12	20	12	15	30	36
26741-16-16	1.5/16"X12	25	16	16	31.5	41
26741-20-16	1.5/8"X12	25	16	17	32.5	50
26741-20-20	1.5/8"X12	32	20	17	36.6	50
26741-24-20	1.7/8"X12	32	20	20	36.9	55
26741-24-24	1.7/8"X12	38	24	20	41.6	55
26741-32-32	2.1/2"X12	51	32	23.5	49.5	75
