Integral 45° JIC Female 74°Cone 26741F

$2.00

≥500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Transportation:: Ocean, Air

Port:: Xingang Port China, Qingdao Port China, Shanghai Port China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000 pieces per day
Supply Ability:	5000 pieces per day
Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001:2015
Transportation:	Ocean,Air
Port:	Xingang Port China,Qingdao Port China,Shanghai Port China

Product Description

Hydraulic hose fittings, hydraulic couplier, hydraulic adaptor.

One Piece hydraulic fiftings, Integral fittings.

Salty Steam Testing, 72 Hours, 96 Hours

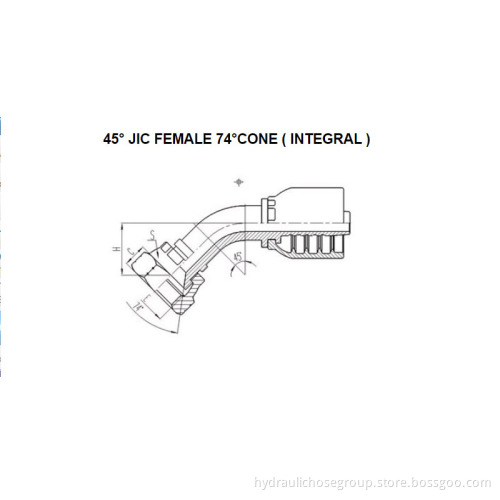

INTEGRAL 45° JIC FEMALE 74°CONE SEAT SEAL (26741F)

Material: carbon steel, stainless steel, brass;

Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel;

Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries.

Products Specification:

E

HOSE BORE

DIMENSIONS

PART NO.

THREAD E

DN

DASH

C

H

S

26741-F-04-04

7/16"X20

6

04

9

18.1

15

26741-F-05-05

1/2"X20

8

05

9.5

19.3

17

26741-F-06-05

9/16"X18

8

05

10.5

19.3

19

26741-F-06-06

9/16"X18

10

06

10.5

20

19

26741-F-08-06

3/4"X16

10

06

11

21.4

24

26741-F-08-08

3/4"X16

12

08

11

23.5

24

26741-F-10-10

7/8"X14

16

10

13

25.3

27

26741-F-10-12

7/8"X14

20

12

13

28.9

27

26741-F-12-10

1.1/16"X12

16

10

15

26.4

32

26741-F-12-12

1.1/16"X12

20

12

15

30

32

26741-F-14-12

1.3/16"X12

20

12

15

30

36

26741-F-16-16

1.5/16"X12

25

16

16

31.5

41

26741-F-20-16

1.5/8"X12

25

16

17

32.5

50

26741-F-20-20

1.5/8"X12

32

20

17

36.6

50

26741-F-24-20

1.7/8"X12

32

20

20

36.9

55

26741-F-24-24

1.7/8"X12

38

24

20

41.6

55

26741-F-32-32

2.1/2"X12

51

32

23.5

49.5

75

Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 26742-F-xx-xx.

Hyraulic Couplings, Hydraulic Hose Fitting, Hydraulic Hoses And Fittings,Hose Crimping Machine, Hydraulic Fitting,

Hydraulic Connectors, Hydraulic Hose Machine.

Send your message to this supplier

* From:
* To:

Mr. CAO YAN
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Integral JIC Female Fitting , Integral JIC Fittings , One Piece JIC Fittings

E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	C	H	S
26741-F-04-04	7/16"X20	6	04	9	18.1	15
26741-F-05-05	1/2"X20	8	05	9.5	19.3	17
26741-F-06-05	9/16"X18	8	05	10.5	19.3	19
26741-F-06-06	9/16"X18	10	06	10.5	20	19
26741-F-08-06	3/4"X16	10	06	11	21.4	24
26741-F-08-08	3/4"X16	12	08	11	23.5	24
26741-F-10-10	7/8"X14	16	10	13	25.3	27
26741-F-10-12	7/8"X14	20	12	13	28.9	27
26741-F-12-10	1.1/16"X12	16	10	15	26.4	32
26741-F-12-12	1.1/16"X12	20	12	15	30	32
26741-F-14-12	1.3/16"X12	20	12	15	30	36
26741-F-16-16	1.5/16"X12	25	16	16	31.5	41
26741-F-20-16	1.5/8"X12	25	16	17	32.5	50
26741-F-20-20	1.5/8"X12	32	20	17	36.6	50
26741-F-24-20	1.7/8"X12	32	20	20	36.9	55
26741-F-24-24	1.7/8"X12	38	24	20	41.6	55
26741-F-32-32	2.1/2"X12	51	32	23.5	49.5	75
