90° SAE Female 90° Cone Seat 27891

$0.70

≥500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Transportation:: Ocean, Air

Port:: Xingang Port China, Qingdao Port China, Shanghai Port China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000 pieces per day
Supply Ability:	5000 pieces per day
Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001:2015
Transportation:	Ocean,Air
Port:	Xingang Port China,Qingdao Port China,Shanghai Port China

Product Description

Hydraulic hose fittings, hydraulic couplier, hydraulic adaptor.

Salty Steam Testing, 72 Hours, 96 Hours

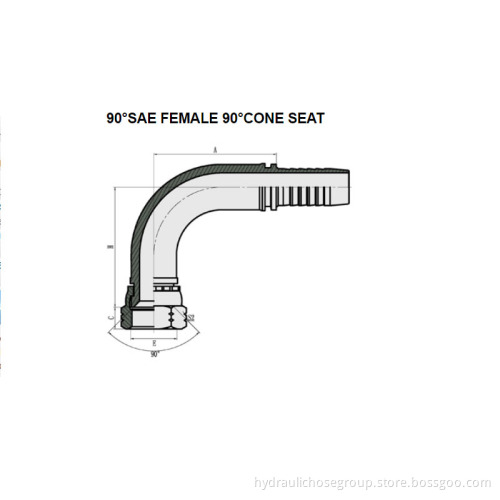

90°SAE FEMALE 90°CONE SEAT (27891)

Material: carbon steel, stainless steel, brass;

Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel;

Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries.

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S2	H
27891-04-03	7/16"*20	5	03	26.5	9	15	30.5
27891-06-04	5/8"*18	6	04	30	11.3	22	36
27891-06-05	5/8"*18	8	05	33	11.3	22	39
27891-06-06	5/8"*18	10	06	35.3	11.3	22	41.3
27891-10-08	7/8"*14	12	08	41	13	27	47
27891-10-10	7/8"*14	16	10	56.5	13	27	51.5
27891-12-12	1.1/16"*14	20	12	65.5	14.3	32	63.5
