BSPT Male Seal 13011-SP

$1.10

≥500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Transportation:: Ocean, Air

Port:: Xingang Port China, Qingdao Port China, Shanghai Port China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000 pieces per day
Supply Ability:	5000 pieces per day
Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001:2015
Transportation:	Ocean,Air
Port:	Xingang Port China,Qingdao Port China,Shanghai Port China

Product Description

Hydraulic hose fittings, hydraulic couplier, hydraulic adaptor.

Salty Steam Testing, 72 Hours, 96 Hours

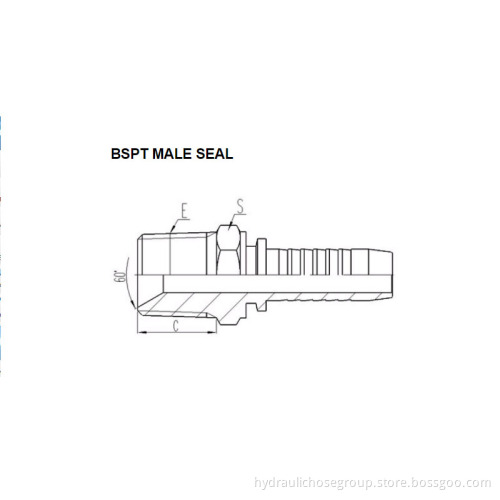

BSPT MALE SEAL (13011-SP)

Material: carbon steel, stainless steel, brass;

Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel;

Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries.

Products Specification:

E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	C	S
13011-02-03SP	R1/8"X28	5	03	10	12
13011-02-04SP	R1/8"X28	6	04	10	12
13011-04-04SP	R1/4"X19	6	04	14.5	17
13011-04-05SP	R1/4"X19	8	05	14.5	17
13011-04-06SP	R1/4"X19	10	06	14.5	17
13011-06-04SP	R3/8"X19	6	04	15	19
13011-06-05SP	R3/8"X19	8	05	15	19
13011-06-06SP	R3/8"X19	10	06	15	19
13011-06-08SP	R3/8"X19	12	08	15	22
13011-08-06SP	R1/2"X14	10	06	20	22
13011-08-08SP	R1/2"X14	12	08	20	22
13011-08-10SP	R1/2"X14	16	10	20	24
13011-12-10SP	R3/4"X14	16	10	20	30
13011-12-12SP	R3/4"X14	20	12	20	30
13011-12-16SP	R3/4"X14	25	16	20	32
13011-16-12SP	R1"X11	20	12	25.5	36
13011-16-16SP	R1"X11	25	16	25.5	36
13011-20-20SP	R1.1/4"X11	32	20	26.5	46
13011-24-24SP	R1.1/2X11	38	24	26.5	50
13011-32-32SP	R2"X11	51	32	30	65
