90° Metric Female 74° Cone Seal 20791-T

$0.90

≥500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Transportation:: Ocean, Air

Port:: Xingang Port China, Qingdao Port China, Shanghai Port China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000 pieces per day
Supply Ability:	5000 pieces per day
Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001:2015
Transportation:	Ocean,Air
Port:	Xingang Port China,Qingdao Port China,Shanghai Port China

Product Description

Hydraulic Hose Fittings, Hydraulic Fitting, Hydraulic Cuplier, Hydraulic Couplings, Hydraulic Adaptor and Hydraulic Quick Coupler

are used for Hydraulic Hose, Steel Wire Braided Hydraulic Hose and Hydraulic Hose Sae100.

They are crimped by Hose Machines, Hose Crimping Machine.

Salty Steam Testing, 72 Hours, 96 Hours

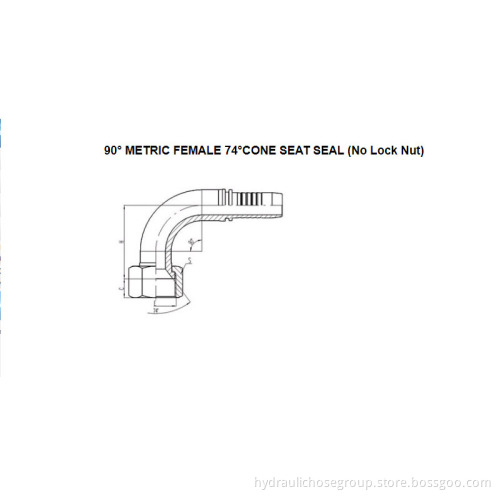

90° METRIC FEMALE 74°CONE SEAT SEAL (20791-T) -No Lock Nut

Material: carbon steel, stainless steel, brass;

Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel;

Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries.

Products Specification:

E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	C	S	H
20791-33-12T	M33X2	20	12	14	41	60
20791-36-12T	M36X2	20	12	14	41	60
20791-36-14T	M36X2	22	14	14	41	60
20791-39-16T	M39X2	25	16	13	46	67.5
20791-45-20T	M45X2	32	20	15	55	78.5
20791-52-24T	M52X2	38	24	17	60	92

Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20792-xx-xxT;
