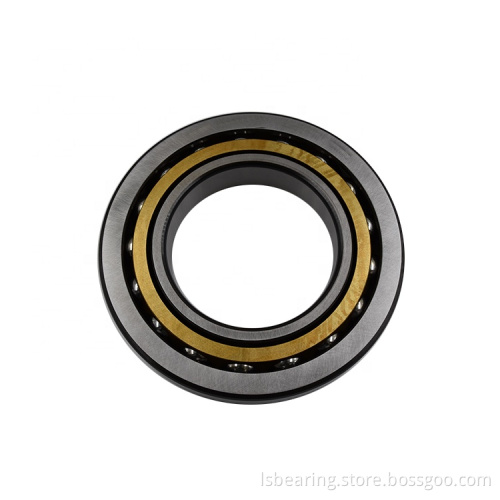

Single row 7000 angular contact spherical plain bearings

Single row 7000 angular contact spherical plain bearings

Angular contact ball bearing with 15 ° (C) and 25 ° (AC) contact angles. As for the angular contact ball bearings, the bigger the contact angle is, the greater the axial load capacity is, but the lower the limited speed of bearings becomes. Therefore ,the spindle, with high speed and small axial load ,should adopt the 15 ° angular contact ball bearings,whereas the 25 ° angular contact ball bearing should be adopted.
Angular contact ball bearings with high-speed angular contact bearings (standard series), super-speed angular contact ball bearings, high-speed sealed angular contact ball bearings and high-speed spindle bearings.

Double row angular contact ball bearings can withstand larger radial load and axial joint load and torque load, limit the axial displacement of the two aspects. Mainly used for limiting the axial displacement of the shaft and the shell.
Double row angular contact ball bearing inner and outer ring of the tilt between the limited, allowing the tilt angle depends on the internal clearance of the bearing, bearing size, internal design and role in bearing the force and torque, and the maximum allowable inclination angle should ensure that the bearing will not produce high additional stress.

Welcome contact for more inquiry:
1.Deep Groove Ball Bearing
2.Wheel Hub bearing
3.Cylindrical Roller Bearing
4.Spherical Roller Bearing
5.Angular Contact Ball Bearing
6.Tapered Roller Bearing
7.Auto Engine Valve
8.Auto Parts Piston And Ring
9.Pillow Block Bearing
10.Skf Deep Groove Ball Bearing
11.Auto Parts Timing Chain Kits
12.NSK ball bearing
If you have any inquiry of our products, pls feel free to contact us .
