Free sample copper roller cage sphercial roller bearing
-
$9.991-99 Set/Sets
-
$9.69100-999 Set/Sets
-
$8.99≥1000 Set/Sets
- Transportation:
- Express, Ocean, Land, Air
- Port:
- Qingdao Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000000 Piece/Pieces per Month |
| Supply Ability: | 5000000 Piece/Pieces per Month |
| Payment Type: | L/C,D/P,T/T,Western Union,MoneyGram |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | Supply |
| HS Code: | Asked |
| Transportation: | Express,Ocean,Land,Air |
| Port: | Qingdao Port |

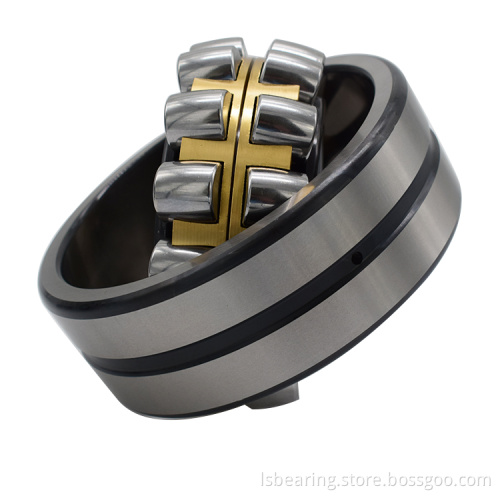

Free sample copper roller cage spherical roller bearing
Spherical Roller Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection and with relatively heavy radial loads and some axial loads in either direction. They are also extremely resistant to shock loads and their self-aligning feature allows full capacity loading despite shaft deflection. They are very similar in purpose to Self-Aligning Double Row Ball Bearings, except the Spherical Roller Bearings are designed to be more robust by carry heavier loads but at lower maximum speeds. These bearings have barrel-shaped rollers between the inner ring, which has two raceways, and the outer ring which has one spherical raceway. They are self-aligning because the center of curvature of the outer ring raceway surface coincides with the bearing axis.
|
Product Material
|
Chrome steel GCr15
|
|
|
|
|||
|
Cage Material
|
Steel / Copper (CA, CC, MB, MA, E, CCK, CAK)
|
|
|
|
|||
|
Precision Grade
|
P0 / P6 are all available for spherical roller bearing
|
|
|
|
|||
|
Clearance
|
C0, C3, C4
|
|
|
|
|||
|
Lubrication hole type
|
Lubrication Groove & 3 Holes
|
|
|
|
|||
|
Features
|
High load capacity, Automatic Self-Aligning, Impact Resistance, Vibration Resistance
|
|
|
|
|||
|
Application
|
Papermaking machinery, reduction devices, axles of railway vehicles, printing machinery etc
|
|
|
|
|||
|
Service
|
1.OEM service offered ,to meet the customer's requirements
2.Most competitive price , factory direct supply.
|
|
|
|
|||
|
Delivery Time
|
Generally it is 2-5 days if in stock,7-15 days if not stock, it is according to customer's requirements
|
|
|
|
|||
|
Package
|
PE bag+paper box+outer carton+wooden box/pallet, or as customers' requirement.
|
|
|
|
|||
1. Accommodate misalignment
Spherical roller bearings are self-aligning like self-aligning ball bearings or CARB bearings.
2. High load carrying capacity
Spherical roller bearings are designed to accommodate both heavy radial loads and axial loads in both directions.
3. Long service life
The rollers are manufactured to such tight dimensional and geometrical tolerances that they are practically identical in a roller set. The symmetrical rollers self-adjust, providing optimal load distribution along the roller length and together with the special profile prevent stress peaks at the roller ends.
4. Low friction and Low noise
Self-guiding rollers keep friction and frictional heat at low levels. A floating guide ring guides unloaded rollers so that they enter the load zone in the optimal position.
1.Deep Groove Ball Bearing
2.Wheel Hub bearing
3.Cylindrical Roller Bearing
4.Spherical Roller Bearing
5.Angular Contact Ball Bearing
6.Tapered Roller Bearing
7.Auto Engine Valve
8.Auto Parts Piston And Ring
9.Pillow Block Bearing
10.Skf Deep Groove Ball Bearing
11.Auto Parts Timing Chain Kits
12.NSK ball bearing
If you have any inquiry of our products, pls feel free to contact us .
